TATRA Phoenix 1.0 | 3D files

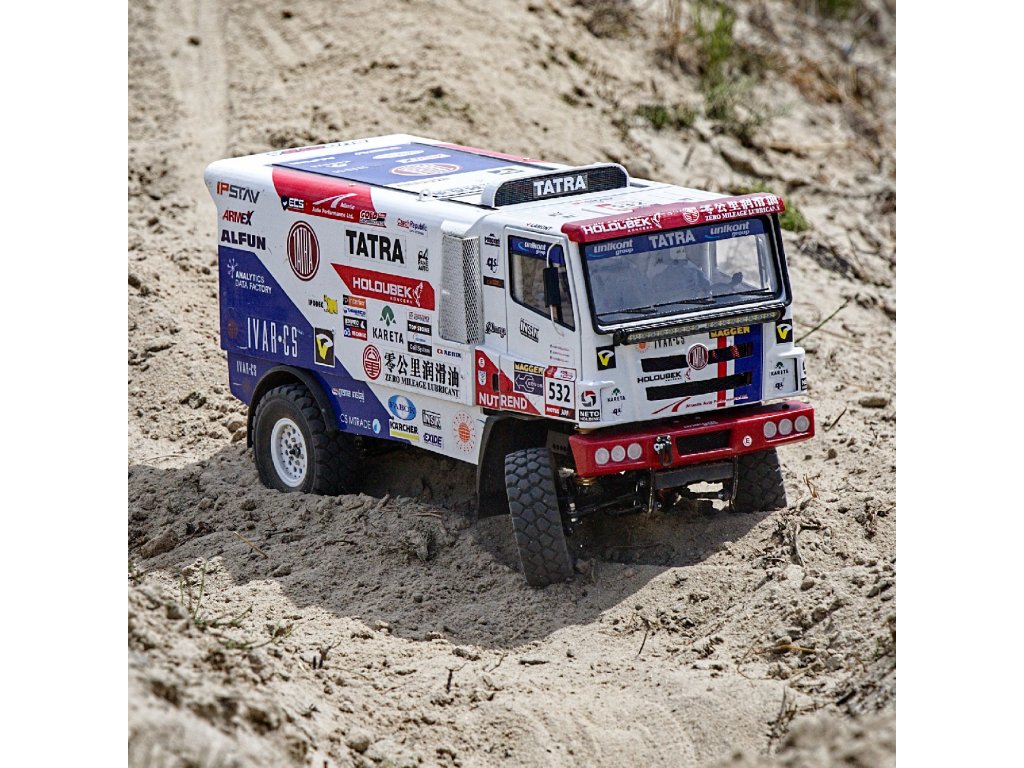

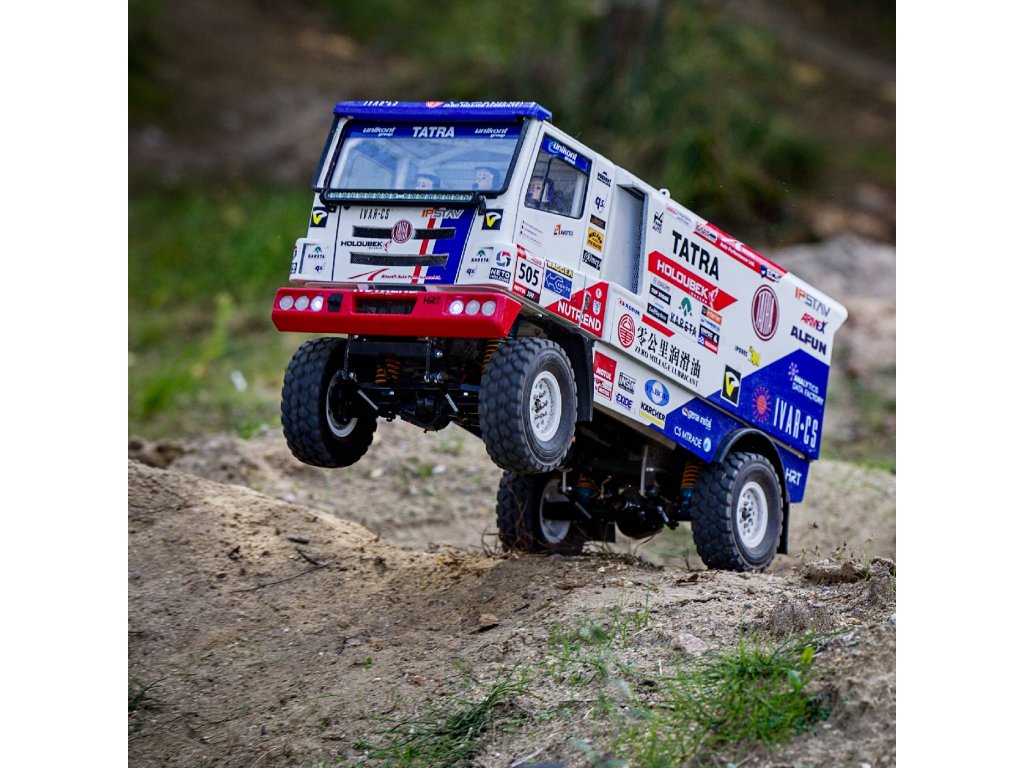

STL files for 3D printing of the TATRA Phoenix truck model in 1:12 scale. Compatible with chassis for RC Truck Model of our design.

In stock
118,44 €
Category: STL files

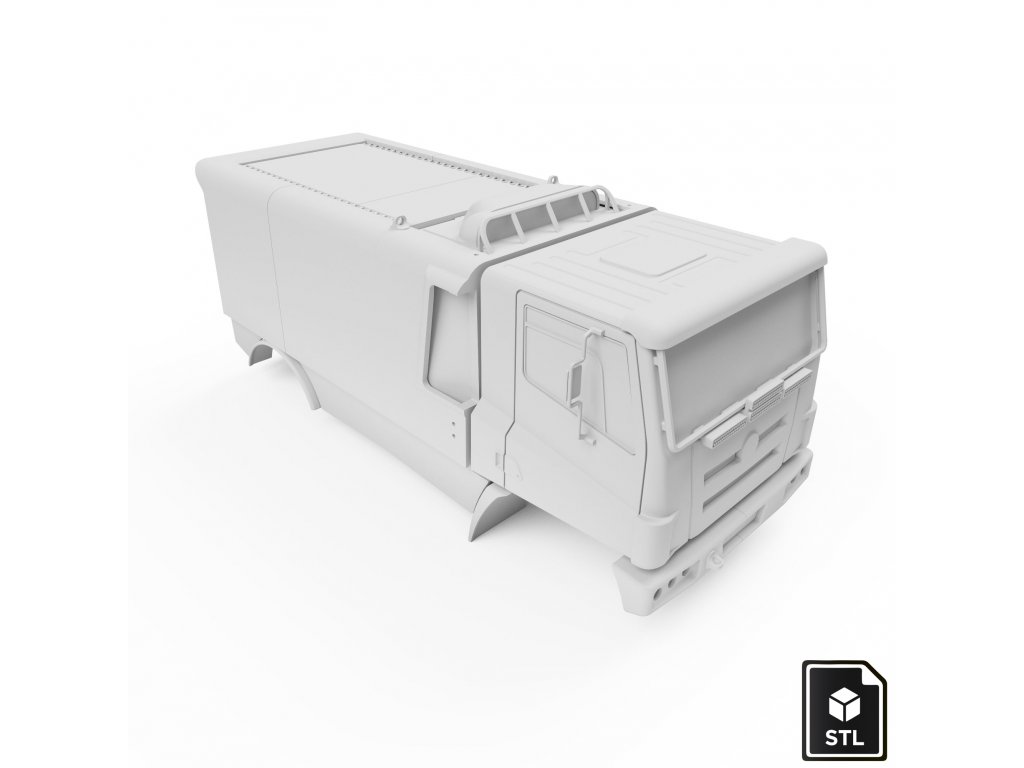

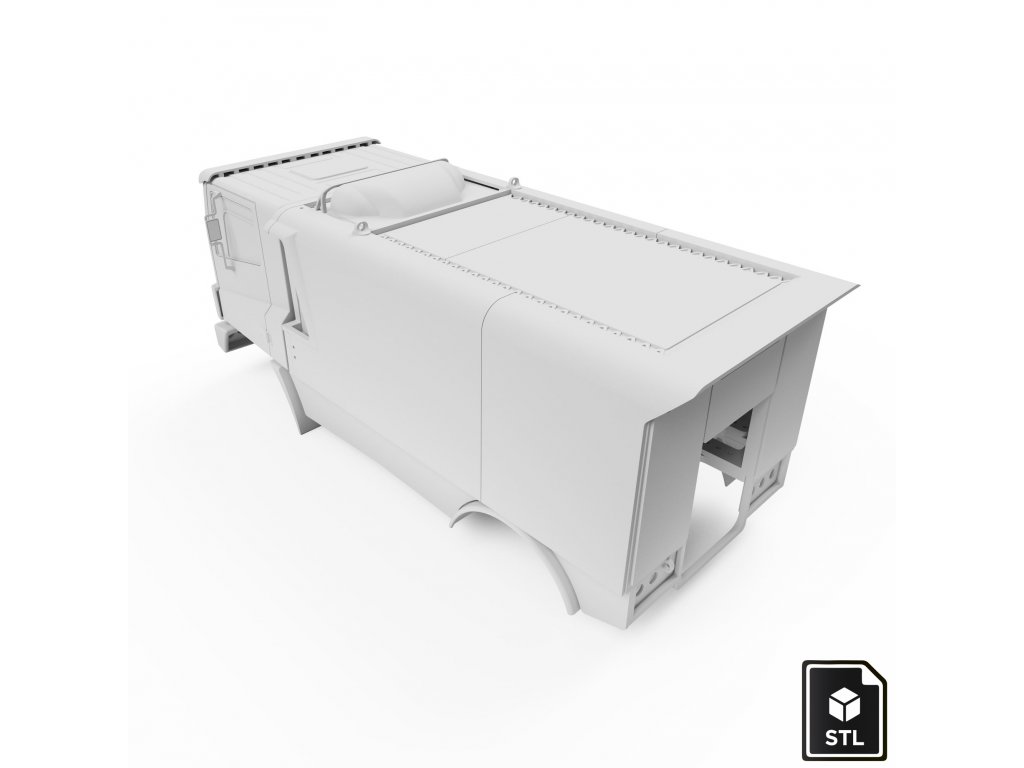

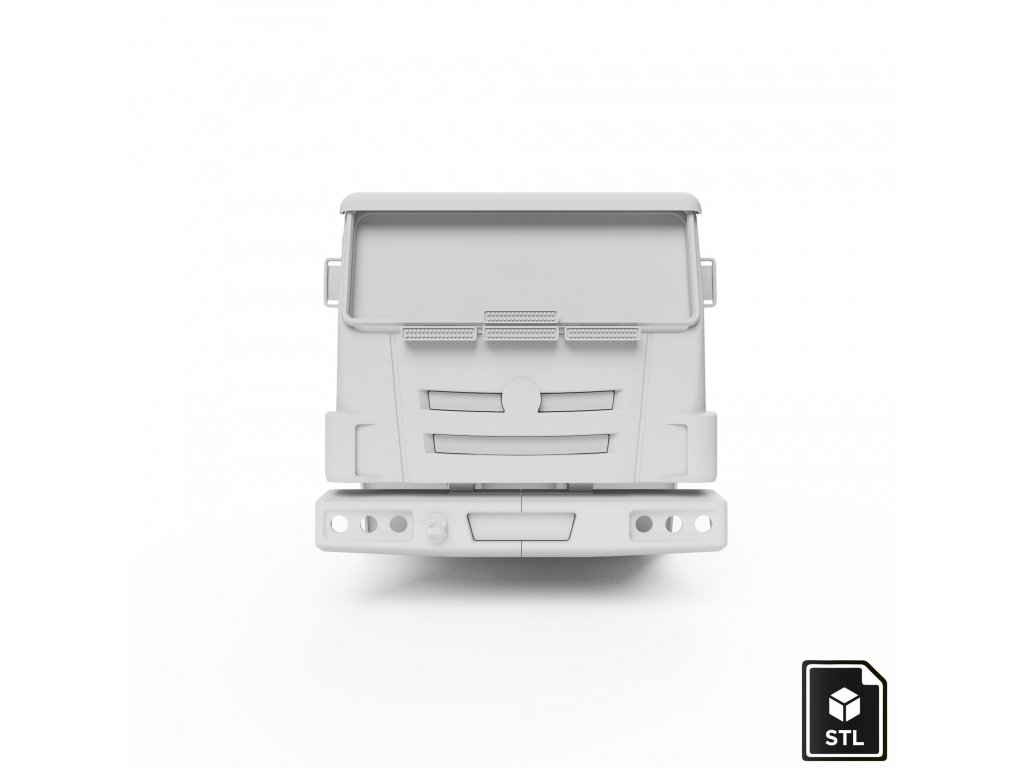

STL files for 3D printing of a TATRA truck model in 1:12 scale

 The sets are ready to be attached to the frame of our skeleton.



The files contain:

TATRA - cabin
TATRA - bumper L
TATRA - bumper R
TATRA - base plate - cabin
TATRA - base plate - superstructure - front part
TATRA - base plate - superstructure - rear part
TATRA - cabin roof
TATRA - light ramp
TATRA - outdoor protective frame
TATRA - inner protective frame L
TATRA - inner protective frame R
TATRA - steering wheel
TATRA - sun visor
TATRA - window frame (print 2 pcs)
TATRA - window - board for cutting lexan
TATRA - board for the crew
TATRA - leg - under the board for the crew (print 4pcs)
TATRA - dashboard
TATRA - front fairing L
TATRA - front fairing R
TATRA - towing eye (print 4pcs)
TATRA - cab grille
TATRA - bumper grille
TATRA - mirror (print 2pcs)
TATRA - mirror handle L
TATRA - mirror handle R
TATRA - superstructure 1 of 3
TATRA - superstructure 2 of 3
TATRA - superstructure 3 of 3
TATRA - front frame - superstructure
TATRA - rear fairing L
TATRA - rear fairing R
TATRA - body cover 1 of 2
TATRA - body cover 2 of 2
TATRA - side panels under the superstructure - rear L
TATRA - side panels under the superstructure - rear R
TATRA - side panels under the superstructure L
TATRA - side panels under the superstructure R
TATRA - electronics cover - lower part (print 2 pcs)
TATRA - electronics cover - middle part (print 2 pcs)
TATRA - electronics cover - lid (print 2 pcs)
TATRA - grille - side of the superstructure L
TATRA - grille - side of the superstructure R
TATRA - grille - rear frame - superstructure - center cover
TATRA - suction cup - grid - for TYPE 1
TATRA - suction cup - grid - for TYPE 2
TATRA - vacuum cleaner TYPE 1
TATRA - vacuum cleaner TYPE 2
TATRA - protective frame for vacuum cleaner
TATRA - rear frame - superstructure - cover L
TATRA - rear frame - superstructure - cover R
TATRA - rear frame - superstructure - lower cover (print 2 pcs)
TATRA - rear frame - superstructure - center cover
TATRA - rear frame - superstructure
CREW seat -15 mm

The dimensions of the folded truck are approx .:

560 mm length

220 mm width

320 mm height



3D printing

Material: up to 3 kg PLA or PET-G

Print time: + - 220 h

Layer height: 0.3 mm for larger parts. Other 0.2 mm

Filling: at least 30%

3 perimeters



The model is required to fit accessories:

16 pcs 12mm satellite dishes for 5mm LEDs
12 pcs white sleeve 12 mm
4 pcs red sleeve 12 mm
20 pcs of neodymium magnets with dimensions: 10 (12) x 3 mm (2.5 or 2) - round
8 pcs of neodymium magnets with dimensions: 6 x 3 x 1 mm (LxWxH)
1 pc of lexan board
It is possible to introduce stickers to the model.
