TATRA "Queen" 24 | 3D files

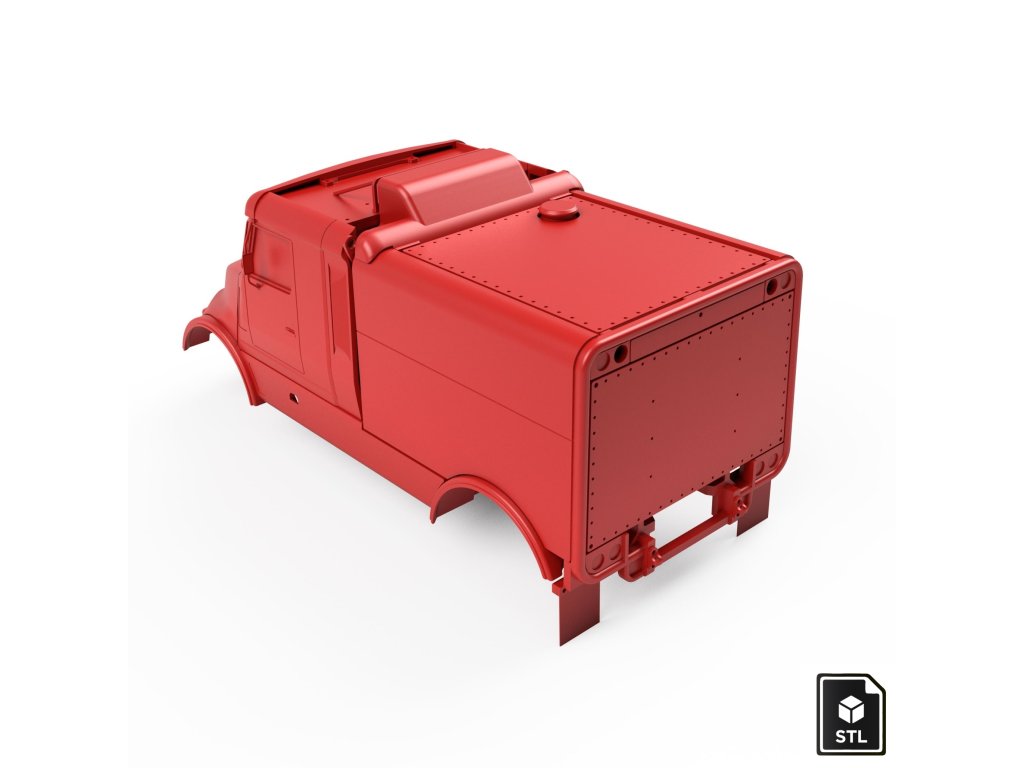

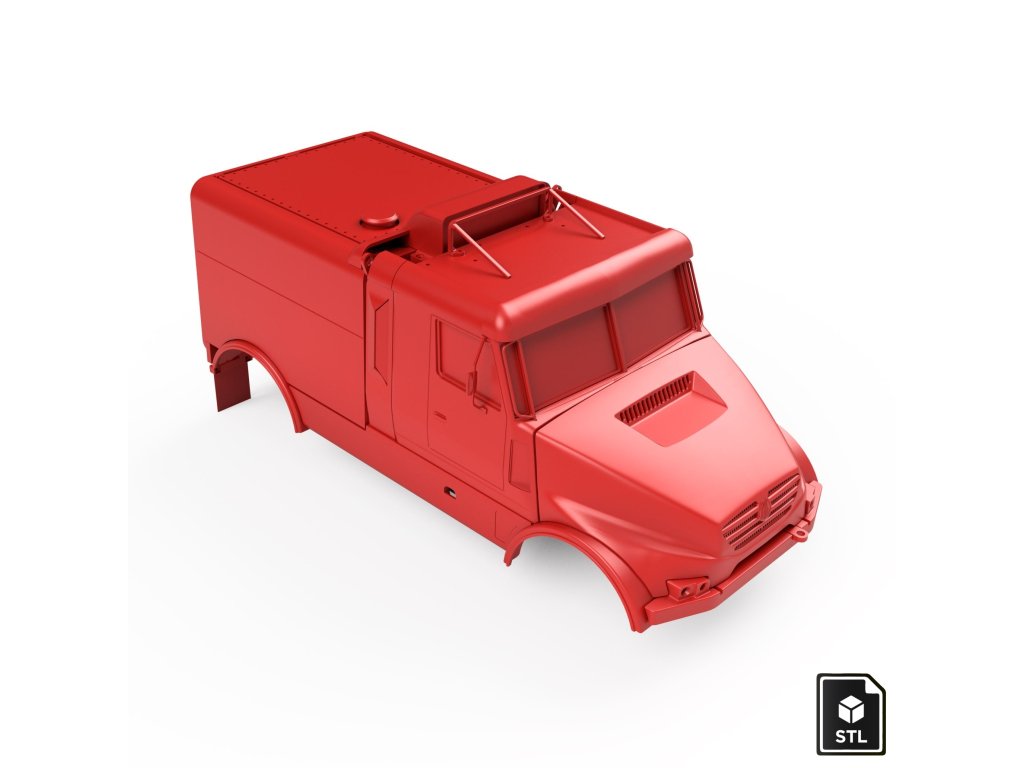

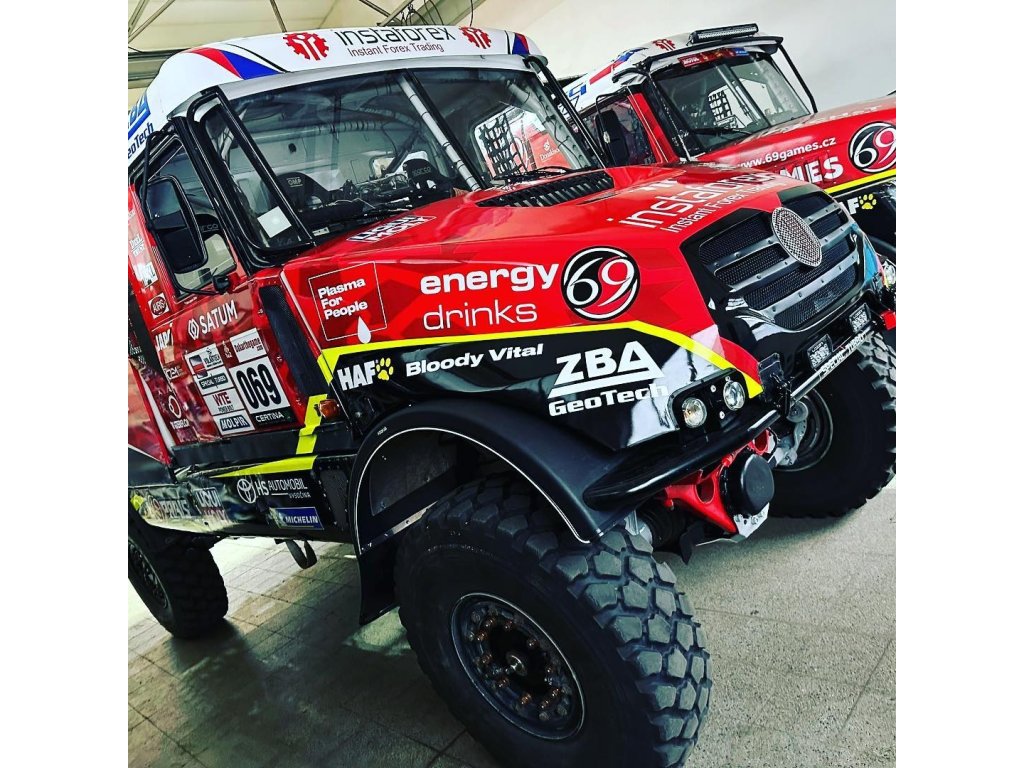

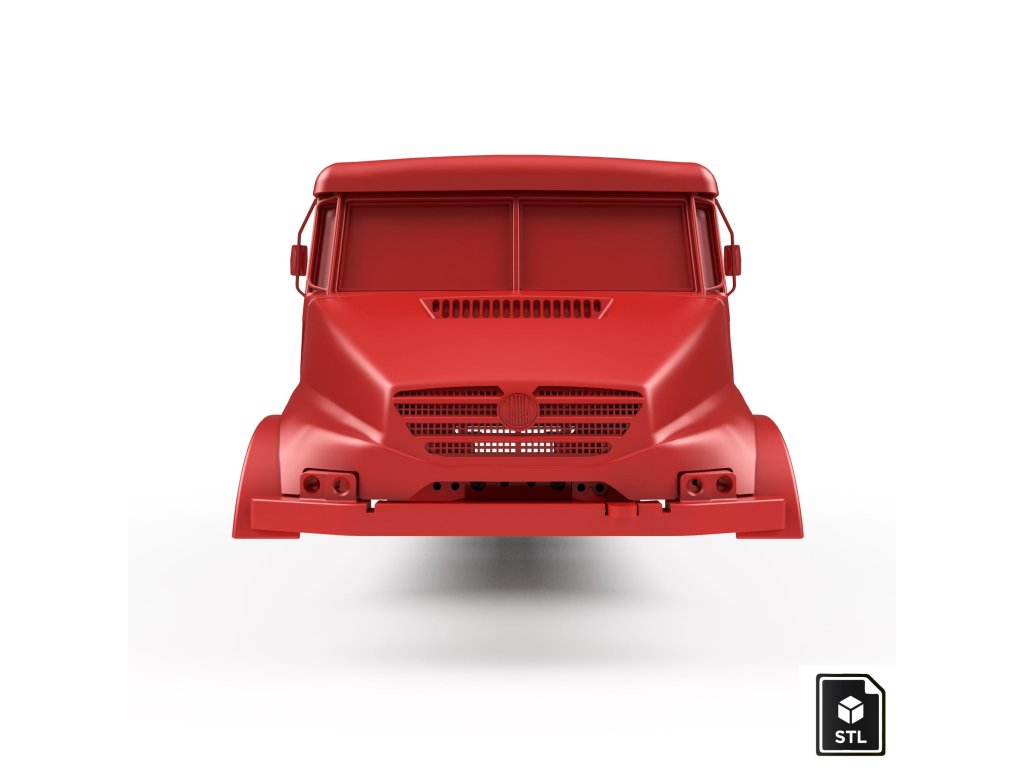

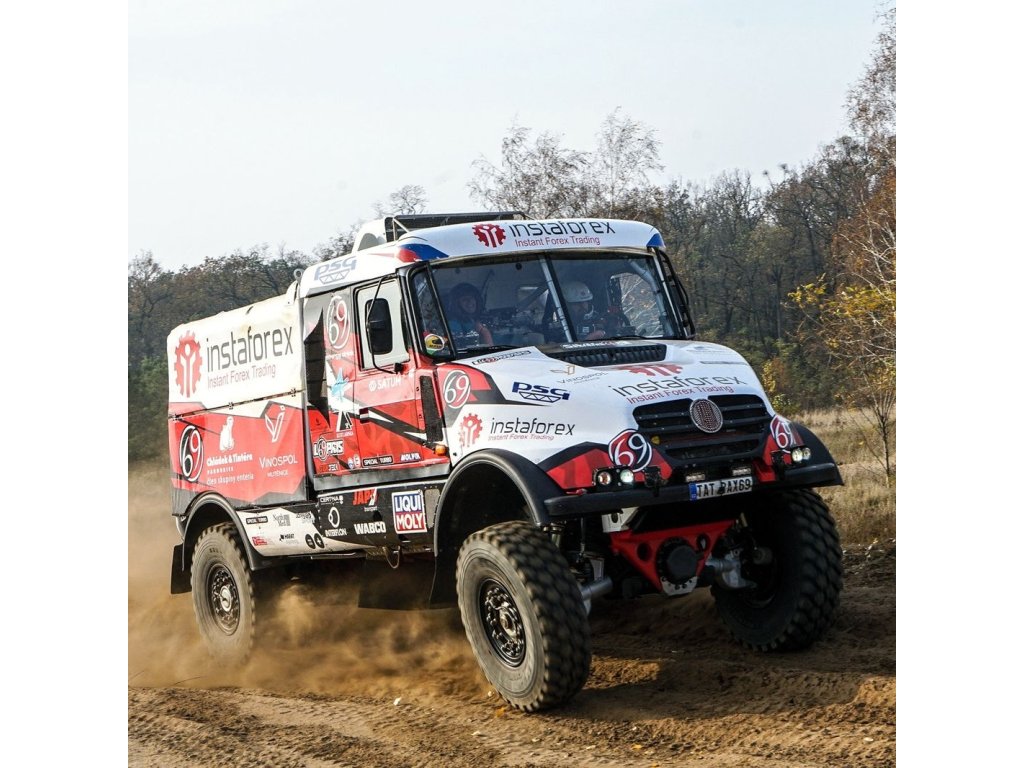

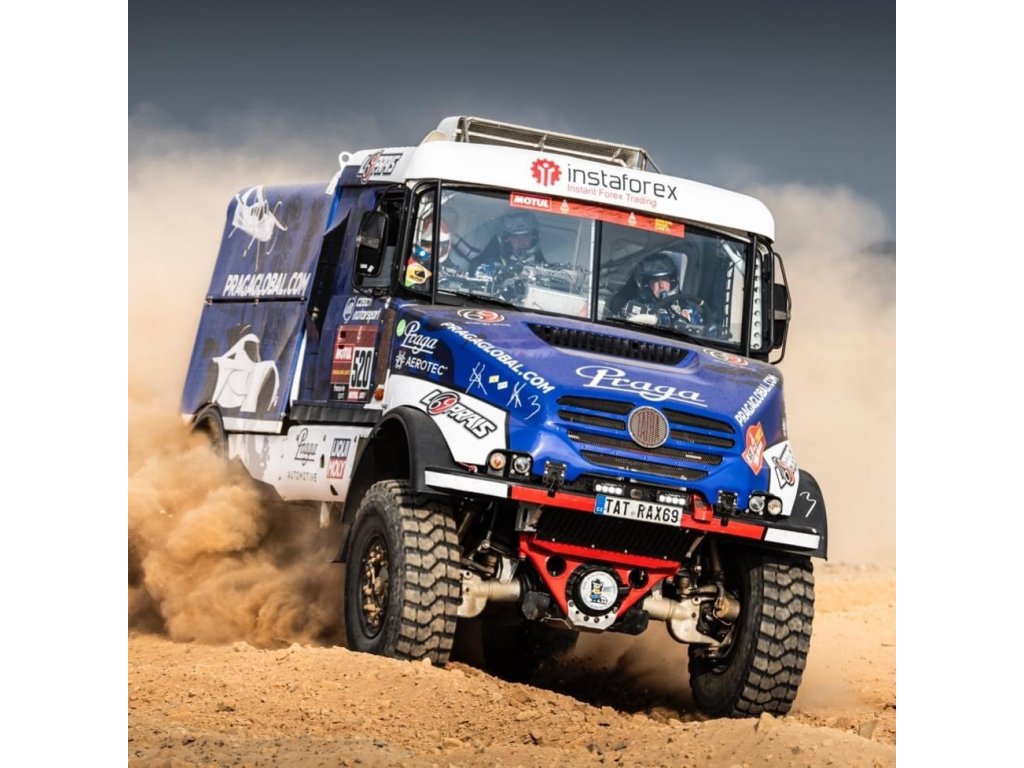

TATRA "Queen" - STL files of the model truck which is built according to the real racing truck of Ales Loprais. Scale 1:12 and compatible with RC Truck Models chassis.
| Category: | STL files |
|---|
Files contain
Complete truck model for 3D printing - assembled Complete truck model for 3D printing - unfoldedComplete truck model for 3D printing - unfolded for printing
Printable parts
| A01_TATRA Q - front bumper |
| A02_TATRA Q - front push eye |
| A03_TATRA Q - front wheel arch L+R |
| A04_TATRA Q - mounting of hood and front bumper to frame |
| A05_TATRA Q - hood |
| A06_TATRA Q - Hood - logo and cap |
| B01_TATRA Q - cab - basic structure |
| B02_TATRA Q - cab - roof |
| B03_TATRA Q - cab - frame mounting - FRONT+REAR |
| B04_TATRA Q - cab - sun visor |
| B05_TATRA Q - cab - crew board |
| B06_TATRA Q - cab - inner protective frame |
| B07_TATRA Q - cab - instrument panel |
| B08_TATRA Q - cab - steering wheel |
| B09_TATRA Q - cab - Roof protection frame |
| B10_TATRA Q - cab - windows for painting |
| B11_TATRA Q - cab - window rubber |
| B12_TATRA Q - cab - protective frame - front |
| B13_TATRA Q - cab - mirrors L+R |
| B14_TATRA Q - cab - under window grille TYP1 |
| B15_TATRA Q - cab - under window grille TYP2 |
| B16_TATRA Q - cab - under cab part L+R |
| B17_TATRA Q - cab - under-cab part - L+R grille |
| B18_TATRA Q - cab - part for behind cab L+R |
| B19_TATRA Q - cab - part behind cab - L+R grid |
| B20_TATRA Q - cab - electronics box L+R |
| C01_TATRA Q - body - front frame |
| C02_TATRA Q - body - air intake |
| C03_TATRA Q - body - air intake - grille |
| C04_TATRA Q - body - front frame eyes L+R |
| C05_TATRA Q - body - plates for electronics - front frame |
| C06_TATRA Q - body - electronics panels L+R |
| C07_TATRA Q - body - electronics box L+R |
| C08_TATRA Q - body - top cover |
| C09_TATRA Q - body - top cover - air intake |
| C10_TATRA Q - body - side panel L+R |
| C11_TATRA Q - body - rear wheel arch L+R |
| C12_TATRA Q - body - rear frame 01 (internal) |
| C13_TATRA Q - body - rear frame 02 ( external) |
| C14_TATRA Q - body - rear cover |
| C15_TATRA Q - body - rear splash guard holder L+R |
| C16_TATRA Q - body - L+R splash guard |
| C17_TATRA Q - body - light covers 6x |
| C18_TATRA Q - body - rear towing eyes 2x |
| C19_TATRA Q - body - spare tyre L+R |
| C20_TATRA Q - body - spare tire strap L+R |
The dimensions of the folded truck are approx.
- 560 mm length
- 220 mm width
- 320 mm height
3D printing - setup:
- Material: up to 3 kg
- Recommended material: PLA / PET-G
- Printing time: + - 200 h
- Layer height: 0.25 mm for larger parts. 0.2 mm for others
- Filling: at least 30% is recommended
- 3 perimeters
- Minimum print area of the printer 220 x 200 mm
- Maximum dimension in Z axis is 210 mm
- Largest part: cabine - 213 x 143 x 140 mm

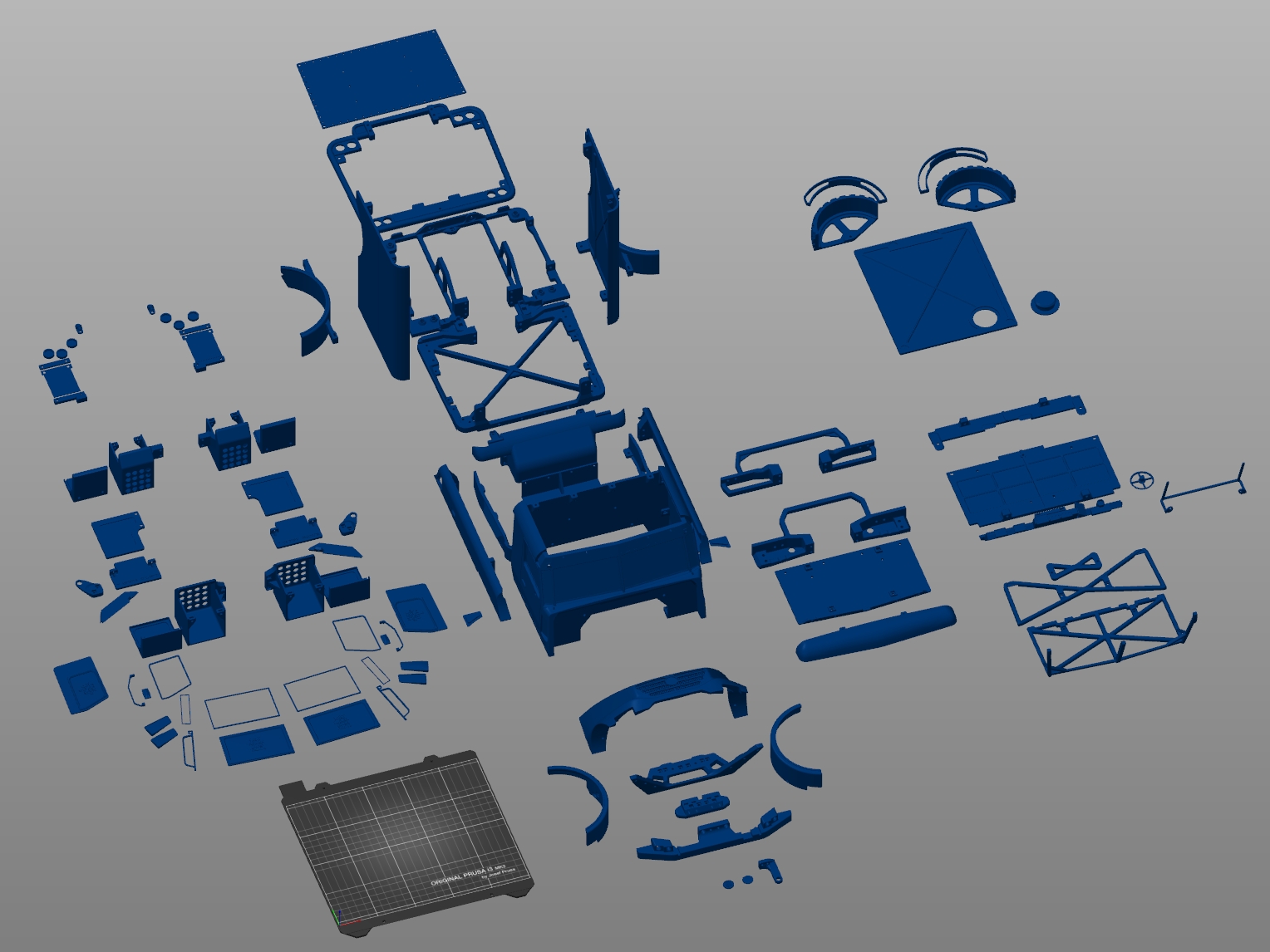

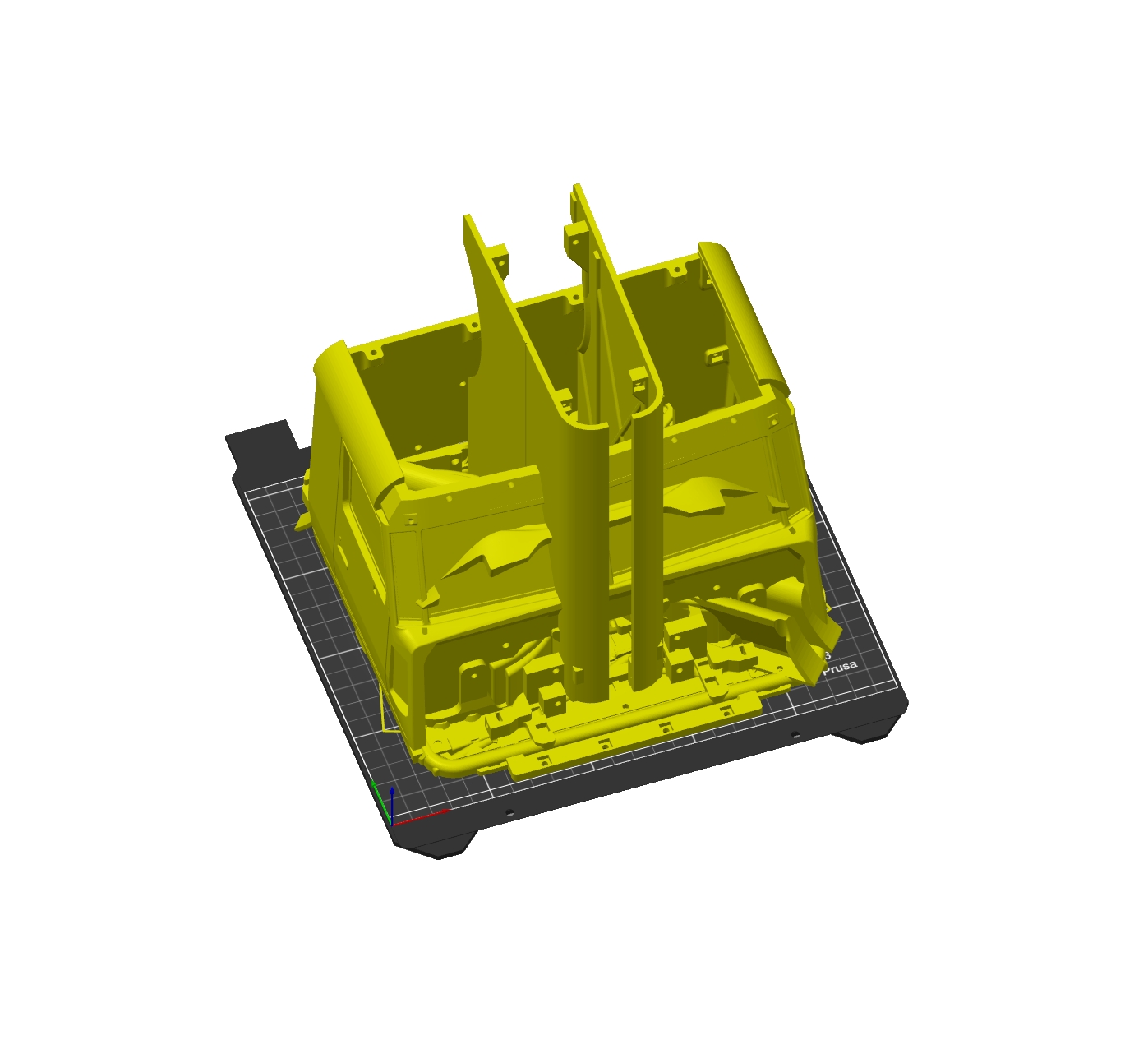

Photos of STL files on the substrate
