SKY RC T100 charger 2x50W

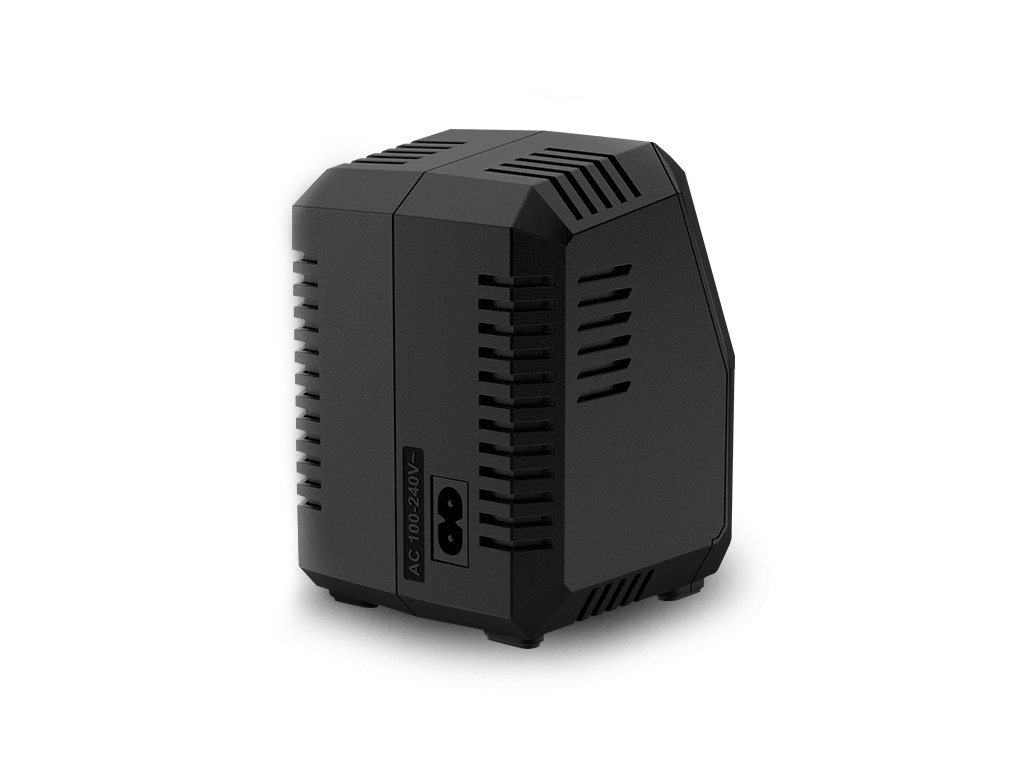

The SKY RC T100 2x50W dual channel charger has been designed to provide everything needed to charge two batteries simultaneously “under one roof”, including the mains power supply and with very simple operation. It has the advantage of a small compact box in a “stand-up” arrangement taking up a minimum of space on a workbench - about the size of your palm.

The T100 can charge common cell types (NiCd, NiMH, Li-Po, Li-ion, Li-Fe, Li-HV, Pb), plus both channels are equipped with built-in four-channel balancers to ensure very safe and comfortable charging of lithium batteries.

What sets it apart from conventional 50W chargers is the truly intelligent software that enables features previously common in “machines” of much higher price ranges, yet is designed for the hands-on user who purchases the charger to charge batteries, not to look at pretty pictures on a fancy phone display:

Program for new types of “high voltage” LiHV lithium batteries with a terminal voltage for charging up to 4.35 V
programs for charging maintenance-free AGM lead-acid batteries and charging lead-acid batteries at low temperatures
setting the terminal voltage for charging and discharging for lithium batteries (allows more gentle charging, which is liked by aviators, or, on the contrary, the brutal overcharging favoured by “car guys”)
measurement of the total voltage and the voltage of individual cells (for lithium batteries) and outside charging
measurement of the internal resistance of the whole set and of individual cells (for lithium batteries)
Overview of basic functions and parameters

Mains power supply 100-240 V/50-60 Hz
For charging 6 - 8 NiCd/NiMH cells, 2 - 4 Li-ion/Li-poly/Li-Fe/LiHV cells or 6/12 V lead-acid batteries with liquid electrolyte and maintenance-free AGMs
Adjustable charging current (0.1 A - 5.0 A)
Max. Charging power 50 W for each channel
Charging termination by delta-peak automation for NiCd and NiMH batteries
Lithium and Pb batteries are charged by “constant current/constant voltage” method
Adjustable delta-peak detection sensitivity for NiCd and NiMH batteries
Adjustable charging termination voltage for lithium batteries
Three charging modes for lithium batteries - fast charging, Charging with emphasis on balancing and storage charging
Three charging modes for lead-acid batteries - for normal lead-acid “car batteries”, for lead-acid AGM batteries (batteries with electrolyte-filled glass fibre separator electrodes) and for charging lead-acid batteries at low temperatures (-20°C to +5°C).
Termination of charging when the set time, delivered charge or limit temperature is exceeded.

 Memory for 10 charging programs for each channel.
Measurement of the total voltage of the set and individual cells (for lithium batteries)
Measurement of the total internal resistance of the set and individual cells (for lithium batteries)
Backlit LCD display with simple and clear menu and display of parameters during charging
A number of warning text messages contribute to safe operation - incorrect input voltage, incorrect wiring, unsuitable battery or its condition, incorrect polarity at the output, etc.
Protection against over-polarity and short circuit at the output.
Compact plastic case, small size
Built-in power supply.
The charger is equipped with XT60 output sockets in both channels and universal sockets for JST-XH service connectors, allowing direct connection of battery power cables and JST-XH service connectors of 2-4S kits - if you use kits with XT60 and JST-XH connectors, you do without charging cables and adapters completely.

Note: The charger uses a terminal voltage of 2.40 V/cell when charging lead-acid batteries (or 2.46 V/cell in the AGM and cold charging programs) - for this reason it is suitable for charging conventional lead-acid batteries (car batteries) and reversible valve gel batteries. It is not suitable for charging gas-tight gel batteries, which must not be charged to more than 2.30 V/cell.

Charger kit includes: charger T100, power cord, instructions.

Input voltage (mains - AC) [V] 100 - 240
Charging current channel 1 [A] 0.1 - 5
Charging current channel 2 [A] 0.1 - 5
Charging power channel 1 [W] 50
Charging power channel 2 [W] 50
Number of channels 2
NiCd [Art. 6 - 8
NiMH [Art.] 6 - 8
Li-Po [Art.] 2 - 4
Li-Ion [Art.] 2 - 4
Li-Fe [Art.] 2 - 4
Li-HV [Art.] 2 - 4
Pb [Art.] 3 - 6
Balancer Yes
Balancer Current [mA] 300
Length [mm] 100
Width [mm] 90
Height [mm] 127
Weight [g] 500
